Sani-Tech® Standard Sanitary Flange End
Características
Disponible en polipropileno natural o materiales de PVDF.
Tamaños: 3/4 ", 1", 1-1/2 ", 2", 2-1/2 "y 3".
Utilizar el sistema de fusión SIB para conectarse en los extremos del tubo.

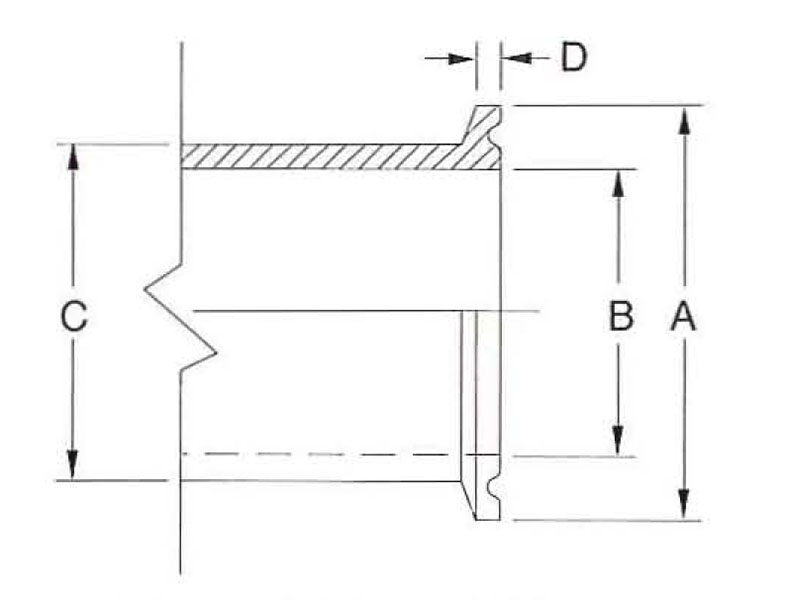

| Ref. | Size | A | B | C | D | Material |
|---|---|---|---|---|---|---|
| STAD075 | MINI | 0.992 in | 0.560 in | 0.750 in | 0.143 in | Polypropylene |
| STAD100 | MAXI | 1.500 in | 0.856 in | 1.106 in | 0.112 in | Polypropylene |
| STAD100L | 1 LADISH | 1.984 in | 0.856 in | 1.106 in | 0.112 in | Polypropylene |
| STAD150 | 1 1/2 | 1.984 in | 1.356 in | 1.606 in | 0.112 in | Polypropylene |
| STAD200 | 2 | 2.516 in | 1.856 in | 2.106 in | 0.112 in | Polypropylene |
| STAD250 | 2 1/2 | 3.047 in | 2.356 in | 2.606 in | 0.112 in | Polypropylene |
| STAD300 | 3 | 3.579 in | 2.856 in | 3.106 in | 0.112 in | Polypropylene |
| STAD400 | 4 | 4.682 in | 3.810 in | 4.060 in | 0.112 in | Polypropylene |
| SKAD075 | MINI | 0.992 in | 0.560 in | 0.750 in | 0.143 in | PVDF |
| SKAD100 | MAXI | 1.500 in | 0.856 in | 1.106 in | 0.112 in | PVDF |
| SKAD100L | 1 LADISH | 1.984 in | 0.856 in | 1.106 in | 0.112 in | PVDF |
| SKAD150 | 1 1/2 | 1.984 in | 1.356 in | 1.606 in | 0.112 in | PVDF |
| SKAD200 | 2 | 2.516 in | 1.856 in | 2.106 in | 0.112 in | PVDF |
| SKAD250 | 2 1/2 | 3.047 in | 2.356 in | 2.606 in | 0.112 in | PVDF |
| SKAD300 | 3 | 3.579 in | 2.856 in | 3.106 in | 0.112 in | PVDF |
| SKAD400 | 4 | 4.682 in | 3.810 in | 4.060 in | 0.112 in | PVDF |
